The thing about the down tube is, you have to miter the tube 3 times. once at the head tube, and 2 times at the bottom bracket. At the bottom bracket you have to miter the downtube to contour the bottom racket, as well as the seat tube.
-

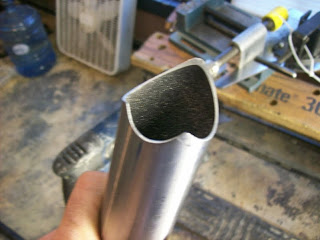

If it's done right. It might look something like this. This still needs a little touching up, but not too much. This is kind of a pain. Once I get this done, I can relax . . . a little.
-
At the other end you have the headtube.
-
The trick is to get the toptube, and the down tube to equally cradle the head tube at a 73.5 degree angle.
-
Something like this.
Now I'm ready to weld up the front triangle!
-
If it's done right. It might look something like this. This still needs a little touching up, but not too much. This is kind of a pain. Once I get this done, I can relax . . . a little.
-
At the other end you have the headtube.
-
The trick is to get the toptube, and the down tube to equally cradle the head tube at a 73.5 degree angle.
-
Something like this.
Now I'm ready to weld up the front triangle!
